產品特點(Product characteristics)：

自動化焊接，焊點均勻，一致性良好，提高合格率實時焊接電流監控，虛焊或炸火報警自動停機

?可選擇點焊規范焊接(正負極可設置不同電流)

?點焊坐標參數可采用U盤導入?yún)?shù)

?運行機構采用伺服電機配合線型模組，精準定位

?可設置點焊規范焊接(正負極分別使用不同電流焊接)

?可設置同一電芯正極點焊，負極不點焊

?Automatic welding, uniform solder joints, good consistency, improve the pass rate

?Real-time monitoring of welding current, automatic stop of false welding or explosive fire alarm

?Optional spot welding specification welding (positive and negative pole can set different current)

?The coordinate parameters of spot welding can be imported by U Disk

?The running mechanism adopts Servo Motor and linear module, and the positioning is precise

?Spot welding specification can be set (positive and negative electrodes are welded with different current)

?The same core can be set for positive pole spot welding, negative pole non-spot welding

1、主要功能：圓柱電芯的組合式雙面自動化焊接

Main function:Auto double-sided welding of cylindrical battery

2、設備功率(Power) :3KW ,220V,50HZ

3、使用氣壓：0.4-0.8Mpa，使用氣源時必須有過濾裝置，確保

氣流無水無雜質。

Air pressure：0.4-0.8Mpa, Air source must be used when there is a filter device to ensure that the flow of water-free impurities.

4、適應范圍:動力電池的串并組合,多并多串組合電動工具電池，扭扭車電池(1個模具點焊6組)，儲能電池包，電動單車電池等

Adaptive range: Power Battery series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, Electric Bicycle Battery, etc.

適合電芯(battery range)：14430/14500/18500/18650/21700

26650/26700/32050/32700

5、最大行程：X axis:200-600mm ; Y axis:200-400mm

6、適合點焊針：進口直徑4-4*6平頭焊針(凸點焊接使用)

進口直徑1.7*100MM(焊點點焊)

Suitable for spot welding:

Imported 4-4 * 6 flat head Pin (for projection welding)

Inlet diameter 1.7 * 100MM (spot welding)

7、適合鎳片寬度：成型鎳片

Suitable for nickel sheet width : Shaped nickel sheet

8、可定制點焊模具前進后出型(適合自動生產線使用)

Can Be customized spot welding die forward and backward type (suitable for automatic production line)

9、可定制自動打磨焊針功能

The function of auto-grinding and welding needle can be customized

10、適合鎳片厚度(Nickel sheet thickness)：

0.1MM---0.2MM(0.15—0.2MM厚度鎳片需開槽)

(0.15-0.2MM thickness nickel sheet needs to be slotted)

凸點焊鎳片(Bump welding nickel sheet):0.21—0.4MM

11、生產效率(Efficiency):About3600PCS-4500PCSCells/H

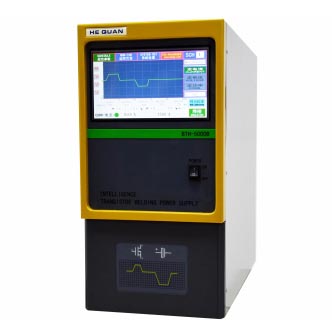

12、標配點焊機：

MDA-8000B晶體管點焊電源,數量?jī)膳_(tái)

Standard spot welding machine:

MDA-8000B Transistor spot welding power supply, 2 sets

Adaptive range: Power Battery series-parallel combination of batteries, multi-parallel multi-series combination, electric tool battery, torsion car battery (1 die spot welding 6 groups) , energy storage battery pack, Electric Bicycle Battery, etc.

適合電芯(battery range)：14430/14500/18500/18650/21700

26650/26700/32050/32700

5、最大行程：X axis:200-600mm ; Y axis:200-400mm

6、適合點焊針：進口直徑4-4*6平頭焊針(凸點焊接使用)

進口直徑1.7*100MM(焊點點焊)

Suitable for spot welding:

Imported 4-4 * 6 flat head Pin (for projection welding)

Inlet diameter 1.7 * 100MM (spot welding)

7、適合鎳片寬度：成型鎳片

Suitable for nickel sheet width : Shaped nickel sheet

8、可定制點焊模具前進后出型(適合自動生產線使用)

Can Be customized spot welding die forward and backward type (suitable for automatic production line)

9、可定制自動打磨焊針功能

The function of auto-grinding and welding needle can be customized

10、適合鎳片厚度(Nickel sheet thickness)：

0.1MM---0.2MM(0.15—0.2MM厚度鎳片需開槽)

(0.15-0.2MM thickness nickel sheet needs to be slotted)

凸點焊鎳片(Bump welding nickel sheet):0.21—0.4MM

11、生產效率(Efficiency):About3600PCS-4500PCSCells/H

12、標配點焊機：

MDA-8000B晶體管點焊電源,數量?jī)膳_(tái)

Standard spot welding machine:

MDA-8000B Transistor spot welding power supply, 2 sets

13、 三種點焊數據輸入Three kinds of data input for spot welding：

點陣輸入法 Lattice input method

陣列輸入法 Array input method

U盤導入法，把點焊數據儲存到U盤，直接導入到機器，(U盤CAD數據按單次導入到觸摸屏，然后可批量從觸摸屏導出到U盤，再一次性到入到其他機器使用)

U Disk import method, the spot welding data stored to the U Disk, direct import to the machine, (U disk CAD data by a single import to the touch screen, and then can be bulk from the touch screen export to the U Disk, once again into other machines to use)

14、點焊模具型號命名：中英文輸入

Type designation of spot welding die：Chinese and English input

15、控制器件:7.5寸觸摸屏，6軸高速PLC編程器，3軸750W伺服電機,2軸400W伺服電機驅動電動焊頭

Control device：7.5-inch touch screen, 6-axis high-speed PLC

programmer, 3-axis 750W servo motor, 2-axis 400W servo motor drive electric welding head

16、鎳帶采用成型鎳帶，減少浪費

The nickel strip adopts the shaped nickel strip to reduce the waste

17、設備調試簡單，易學易懂，換型號速度快(0-199組數據可調用)

Equipment debugging is simple, easy to learn and understand, change models quickly (0-199 groups of data can be called)

18、焊頭動力：伺服電動

Welding power：Servo motor

19、成品電池治具：出廠附帶1套絕緣電木治具(2個)

Finished Battery fixture：Factory with 1 set of insulated bakelite fixture (2)

20、本公司產品保修期為貳年

The warranty period of our products is two years

21、設備外形尺寸(Size)：L1630*W850*H1630MM

22、設備重量(Weight) ：220KG

23、 設備主要配件清單(List of major accessories)

24、 點焊產品圖片 Photo of spot welding product

設備優點

Advantages and disadvantages of equipment

● 設備采用鋁合金加鈑金結構方式,牢固，不易松動，確保定性

The equipment is made of aluminum alloy and sheetmetal structure, which is firm, not easy to loose and ensures the quality

● 適合于電池組的大批量自動化點焊

Suitable for automatic spot welding of large batch of battery pack

● 點焊效果穩定，有保障

The spot welding effect is stable and guaranteed

● 焊接效率高,以18650為例：約3600PCS-4000PCS電芯/小時

High welding efficiency, take 18650 as an example:

about 4000PCS-5000PCS Cells/H

● 點焊模具有防呆配置，普通員工可調試設備和操作設備

The spot welding die is equipped with anti-stuffiness device, which can be adjusted and operated by common staff

● 設備自帶200套點焊參數儲存，無限次U盤存儲導入，可快速切換點焊型號

The equipment has 200 sets of spot welding parameter storage, unlimited time u disk storage import, can quickly switch spot welding model

● 設備電源要求，220V交流接入電源主線國標6平方電線，氣源0.4-0.8Mpa無雜質，無水霧，以保障設備的穩定性

Equipment Power Requirements, 380V AC power supply main line 6 square national standard wire, gas source 0.4-0.8 MPA no
